Server's main window

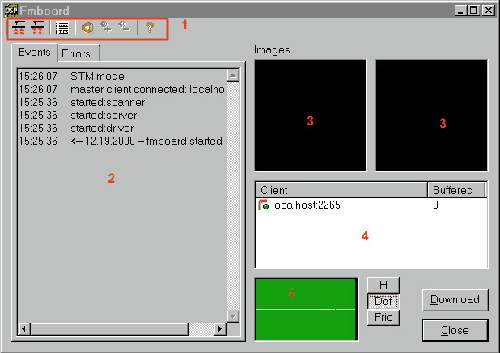

Figure 2.1: Server's main window. 1 - Instrument panel, 2 - message window , 3 - scan process window, 4 - client list, 5 - oscilloscope.
\includegraphics[width=0.9\textwidth]{server2}

In the server's main window instrument panel, message window, scan windows, client list window, oscilloscope, DSP download button and program exit button (pic. 2.1) can be seen.



Subsections
